PRE  FILTER

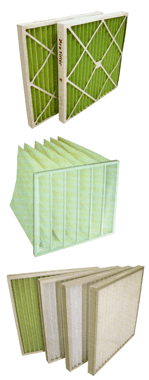

Plate Pre Filter with Cardboard Frame
- Thickness 22(1”), 44(2”) and 95 mm.(4”)
- Material synthetic blend
- Filter Class G1-G4(EN779)

Pocket Filter
- Synthetic Media
- Filter Class G3,G4(EN779)

Panel Pre Filter with metal frame
- Thickness 17,21,25 and 46 mm.
- Synthetic Media
- Filter Class G1-G4(EN779)

MEDIUM  FILTER

Pocket Filter
- Synthetic Media
- Filter Class F5,F6,F7,F8,F9

V Shape Mini-Pleat Medium Filter
- Glass Fiber Paper
- Polystyrene plastic frame can be disposed by incineration
- Relative humidity 100% version available
- Standard size 595x595 or 610x610 , depth 295 mm.

HEPA & UPLA FILTER

Mini-Pleat HEPA Filter
- Gasket is continuous expanded PU and semi-round
- Frame is anodized aluminum
- Metal mesh with powder coated to prevent filter damage
- Filter Class H11-H14,U15-U17 as per EN1822

Separator HEPA Filter with clapboard
- Frame is anodized aluminum or galvanized steel
- Paper separator or aluminum separator
- Filter Class H11-H14,U15-U17 as per EN1822

V Shape HEPA Filter
- Frame is galvanized steel or stainless steel SS304
- High airflow up to 4,200 m3/hr
- Long life time

High Heat-resistance HEPA Filter
- Frame is stainless steel SS304
- Sealant is silica gel for high heat-resistance
- Glass Fiber Media
- Temp resistance to 250°C
- Application of oven and sterilization equipment
- Filter Class H13

HEPA FILTER EQUIPMENTS

Fan Filter Unit
- Special used in semiconductor , electronic , laminar flow
- FFU control panel to adjust airflow
- Standard size and special size available

HEPA Box
- Easy for maintenance
- Compact design
- Filter Class H10-14,U15-17
- Diameter for connection can be 250,300 or 350 mm.

HEPA Unit
- Airflow distribution more equal
- SS304 distribution plate is available
